Code: 11521
QE 60 LL
Max. Airflow60 m³/h
Max. Pressure343 Pa
Power16 W
Speed1170 rpm
Voltage220–240 V
IPIP45
Products / VORT QUADRO EVO
Residential Ventilation
Vortice product family

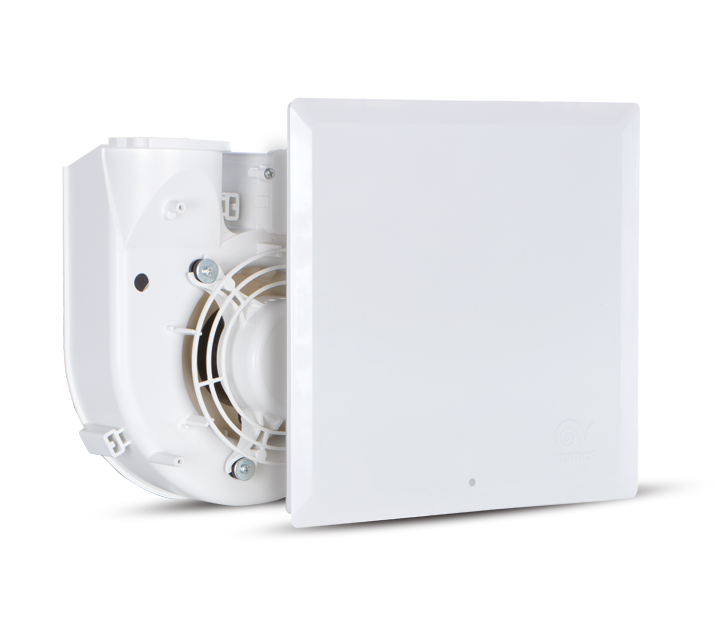

VORT QUADRO EVO
VORT QUADRO EVO is a newer-generation centrifugal extractor family for wall, ceiling and selected flush applications. The range includes fixed/multi-airflow, timer and PIR controls as well as dedicated versions for DIN 18017-3 and fire-protection scenarios.
Product overview
VORT QUADRO EVO is a newer-generation centrifugal extractor family for wall, ceiling and selected flush applications. The range includes fixed/multi-airflow, timer and PIR controls as well as dedicated versions for DIN 18017-3 and fire-protection scenarios.
Key features
- Self-extinguishing ABS components and centrifugal impeller
- Fixed and multi-airflow configurations
- Broad timer, PIR and control-logic variant range
- Special filtered and DIN 18017-3 / fire-protection versions
Application & selection
For apartment buildings, bathroom/WC extract and common-shaft systems where pressure, filtration or specific building-standard requirements matter.
Position in the range
A more modular, application-oriented evolution of classic VORT QUADRO; VORT QUADRO I remains differentiated by its flush-mount format.
Models and variants
23 verified models/variants
Code: 11522
QE 100 LL
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11526
QE 60 LL T
Max. Airflow60 m³/h
Max. Pressure343 Pa
Power16 W
Speed1170 rpm
Voltage220–240 V
IPIP45
Code: 11527
QE 100 LL T
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11523
QE 60/35 LL
Max. Airflow60 m³/h
Max. Pressure343 Pa
Power16 W
Speed1170 rpm
Voltage220–240 V
IPIP45
Code: 11532
QE 60 LL TP
Max. Airflow60 m³/h
Max. Pressure343 Pa
Power16 W
Speed1170 rpm
Voltage220–240 V
IPIP45
Code: 11524
QE 100/60 LL
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11533
QE 100 LL TP
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11528
QE 60/35 LL T
Max. Airflow60 m³/h
Max. Pressure343 Pa
Power16 W
Speed1170 rpm
Voltage220–240 V
IPIP45
Code: 11531
QE 100/60 LL T
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11534
QE 60/35 LL TP
Max. Airflow60 m³/h
Max. Pressure343 Pa
Power16 W
Speed1170 rpm
Voltage220–240 V
IPIP45
Code: 11544
QE 60 LL T PIR
Max. Airflow60 m³/h
Max. Pressure343 Pa
Power16 W
Speed1170 rpm
Voltage220–240 V
IPIP45
Code: 11525
QE 100/60/35 LL
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11535
QE 100/60 LL TP
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11545
QE 100 LL T PIR
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11537
QE 60 LL TP HCS
Max. Airflow60 m³/h
Max. Pressure343 Pa
Power16 W
Speed1170 rpm
Voltage220–240 V
IPIP45
Code: 11538
QE 100 LL TP HCS
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11546
QE 60/35 LL T PIR
Max. Airflow60 m³/h
Max. Pressure343 Pa
Power16 W
Speed1170 rpm
Voltage220–240 V
IPIP45
Code: 11536
QE 100/60/35 LL TP
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11547
QE 100/60 LL T PIR
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11541
QE 60/35 LL TP HCS
Max. Airflow60 m³/h
Max. Pressure343 Pa
Power16 W
Speed1170 rpm
Voltage220–240 V
IPIP45
Code: 11542
QE 100/60 LL TP HCS
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
Code: 11543
QE 100/60/35 LL TP HCS
Max. Airflow100 m³/h
Max. Pressure353 Pa
Power26 W
Speed1570 rpm
Voltage220–240 V
IPIP45
