Code: 10935
VORT HR 300 NETI
Max Airflow300 m³/h
Max Pressure735 Pa
Max Power190 W
Voltage220–240 V
Duct SizeØ125 mm
Weight15 kg
Standard sensible-heat-recovery NETI variant.
Products / VORT HR NETI
Residential Heat Recovery
Vortice product family

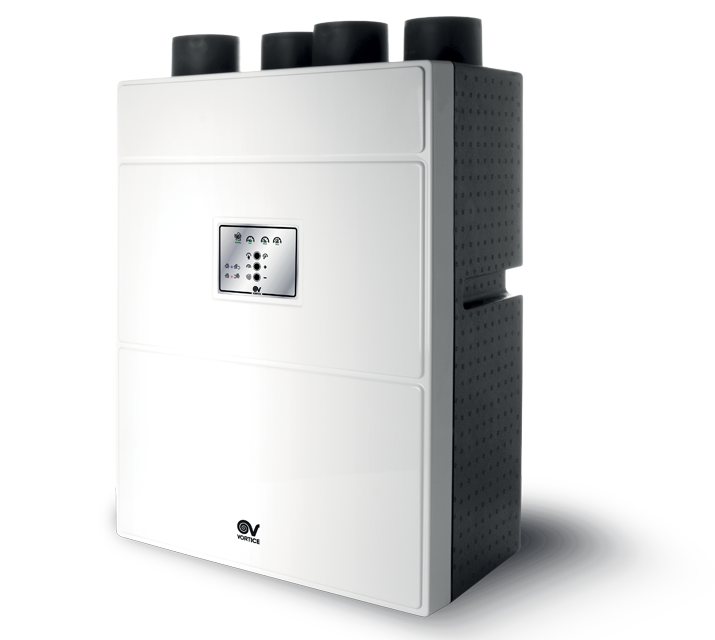

VORT HR NETI
VORT HR NETI is a wall-mounted centralised double-flow heat recovery unit. EC brushless fans, a high-efficiency counter-flow heat exchanger, automatic bypass and filtration provide controlled fresh air for residential and light-commercial spaces. H, IoT and Passive House variants tailor the same platform to different requirements.
Product overview
VORT HR NETI is a wall-mounted centralised double-flow heat recovery unit. EC brushless fans, a high-efficiency counter-flow heat exchanger, automatic bypass and filtration provide controlled fresh air for residential and light-commercial spaces. H, IoT and Passive House variants tailor the same platform to different requirements.
Key features
- Ø125 mm duct connections
- Twin centrifugal fans with EC brushless motors
- High-efficiency counter-flow heat exchanger
- Automatic mechanical bypass and frost protection
- Filtration on supply and extract paths
- Wi-Fi / Cloud / App management on IoT variants
- Enthalpy heat exchanger on H variant
- Passive House configuration on PH variants
Application & selection
Suitable for central residential ventilation around the 300 m³/h class where wall mounting, high heat recovery and low-energy continuous operation are required. Choose H for moisture recovery, IoT for remote management and PH where Passive House-oriented performance is required.
Position in the range
NETI is the compact wall-mounted platform around 300 m³/h. AVEL 350 steps up to 350 m³/h, while AVEL 450 D reaches 400 m³/h with a larger casing and duct size. Selection therefore depends on airflow, installation space and control/enthalpy requirements.
Models and variants
5 verified model/variant
Code: 10912
VORT HR 300 NETI H
Max Airflow342 m³/h
Max Pressure750 Pa
Max Power190 W
Voltage220–240 V
IPIPX2
Thermal Efficiency77.1% max
H variant uses an enthalpy heat exchanger to assist moisture transfer as well as heat recovery. Ø125 mm, approx. 14.7 kg.
Code: 10938
VORT HR 300 NETI IoT
Max Airflow300 m³/h
Max Pressure735 Pa
Max Power190 W
Voltage220–240 V
Duct SizeØ125 mm
Weight15 kg
IoT variant adds Wi-Fi connectivity plus Cloud and App-based remote management.
Code: 10930
VORT HR 300 NETI (PH)
Max Airflow300 m³/h
Max Pressure735 Pa
Max Power190 W
Voltage220–240 V
IPIPX2
Thermal Efficiency92.5% max
PH variant is configured/certified for Passive House-oriented applications. Ø125 mm, 15 kg.
Code: 10924
VORT HR 300 NETI IoT (PH)
Max Airflow300 m³/h
Max Pressure735 Pa
Max Power190 W
Voltage220–240 V
IPIPX2
Thermal Efficiency92.5% max
Combines the Passive House-oriented configuration with IoT remote-management functions. Ø125 mm, 15 kg.
