Code: 12101
VORT HR 450 AVEL D
Max Airflow400 m³/h
Max Pressure680 Pa
Max Power350 W
Voltage220–240 V
IPIPX2
Thermal Efficiency90.4% max
Standard sensible-heat exchanger model. Ø160 mm, 40 kg.
Products / VORT HR AVEL 450 D
Residential Heat Recovery
Vortice product family

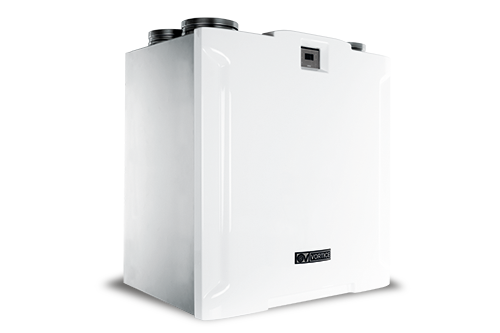

VORT HR AVEL 450 D
VORT HR AVEL 450 D is a wall-mounted central heat-recovery unit in the 400 m³/h class. Constant-airflow EC brushless fans, high-efficiency counter-flow exchanger, automatic filtered bypass, frost protection and Modbus integration target projects with higher airflow demand.
Product overview
VORT HR AVEL 450 D is a wall-mounted central heat-recovery unit in the 400 m³/h class. Constant-airflow EC brushless fans, high-efficiency counter-flow exchanger, automatic filtered bypass, frost protection and Modbus integration target projects with higher airflow demand.
Key features
- Ø160 mm duct connections
- Twin constant-airflow (CAV) EC brushless fans
- 4 independently adjustable speeds
- High-efficiency PS counter-flow exchanger
- Automatic, 100% filtered bypass
- Three ISO Coarse 90% / G4 filters
- Wired LCD control with weekly scheduling
- Modbus integration for building automation
- Enthalpy exchanger on H model
Application & selection
For larger dwellings and light-commercial spaces where the 350 m³/h class is insufficient, providing wall-mounted balanced ventilation and high heat recovery. H is preferred where moisture transfer is also desirable.
Position in the range
The larger 400 m³/h member of the AVEL family. Compared with AVEL 350 it steps up in duct size, casing and airflow; compared with NETI it adds higher capacity and constant-airflow control.
Models and variants
2 verified model/variant
Code: 10910
VORT HR 450 AVEL D H
Max Airflow400 m³/h
Max Pressure680 Pa
Max Power350 W
Voltage220–240 V
IPIPX2
Heat ExchangerEnthalpy
H variant uses an enthalpy exchanger to support moisture transfer as well as heat recovery. Ø160 mm.
Let us evaluate this series for your project.
Contact Vensis for model selection, technical suitability and quotation.
