Code: 12106
VORT HR 350 AVEL
Max Airflow350 m³/h
Max Pressure880 Pa
Max Power165 W
Voltage230 V
IPIPX2
Thermal Efficiency90.5% max
Standard PS counter-flow heat exchanger. Ø150 mm, 23 kg.
Products / VORT HR AVEL 350
Residential Heat Recovery
Vortice product family

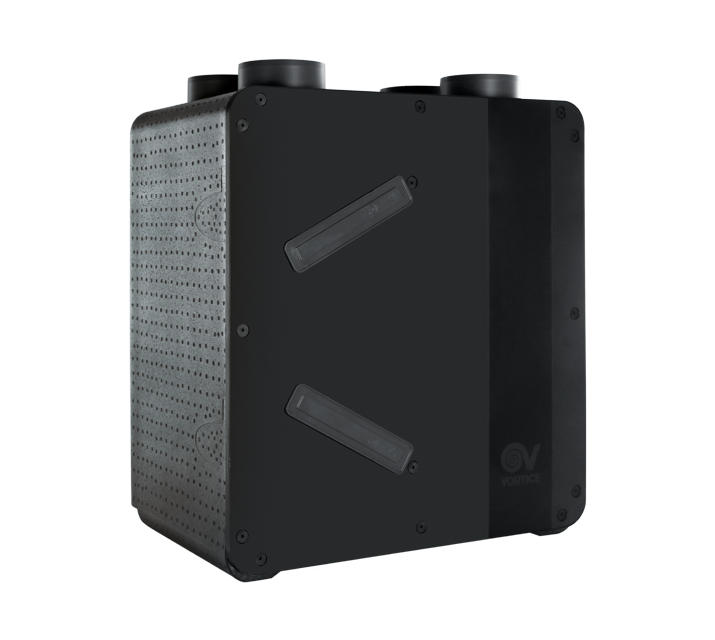

VORT HR AVEL 350
VORT HR AVEL 350 is a compact wall-mounted central heat-recovery unit. A fire-resistant EPP casing, twin EC brushless centrifugal fans, counter-flow heat exchanger, automatic bypass and wired LCD control provide balanced ventilation in the 350 m³/h class.
Product overview
VORT HR AVEL 350 is a compact wall-mounted central heat-recovery unit. A fire-resistant EPP casing, twin EC brushless centrifugal fans, counter-flow heat exchanger, automatic bypass and wired LCD control provide balanced ventilation in the 350 m³/h class.
Key features
- Ø150 mm duct connections
- Twin external-rotor EC brushless fans
- High-efficiency counter-flow exchanger
- Automatic, 100% filtered bypass
- Automatic frost protection
- Wired LCD control panel
- M5 filters; optional F7 on supply
- Enthalpy exchanger on H model, HCS humidity sensor on TOP model
Application & selection
For residential and light-commercial projects requiring wall-mounted central heat recovery around 350 m³/h. The standard model provides sensible heat recovery, while H adds moisture transfer and TOP adds integrated humidity sensing.
Position in the range
One capacity step above HR NETI. AVEL 450 D uses larger Ø160 connections and moves to the 400 m³/h class for higher-airflow projects.
Models and variants
4 verified model/variant
Code: 12096
VORT HR 350 AVEL .
Max Airflow350 m³/h
Duct SizeØ150 mm
Weight23 kg
MotorEC brushless
BypassAutomatic, 100% filtered
ControlWired LCD
Same AVEL 350 platform listed in the current Vortice Fan Selection database. No values were inferred where not published.
Code: 10911
VORT HR 350 AVEL H
Max Airflow350 m³/h
Max Pressure880 Pa
Max Power165 W
Voltage230 V
IPIPX2
Thermal Efficiency90.5% max
H variant uses an enthalpy heat exchanger. Ø150 mm, 23 kg.
Code: 10915
VORT HR 350 AVEL TOP .
Max Airflow350 m³/h
Duct SizeØ150 mm
Weight23 kg
MotorEC brushless
Humidity ControlHCS sensor
ControlWired LCD
TOP variant adds demand-controlled operation via HCS humidity sensing. No values were inferred where not published.
