Code: 11260
VORT-ME 100/4" LL
Max. Airflow95 m³/h
Max. Pressure46,09 Pa
Power9 W
Speed2240 rpm
Voltage220–240 V
IPIP45
Products / PUNTO EVO
Residential Ventilation
Vortice product family
PUNTO EVO

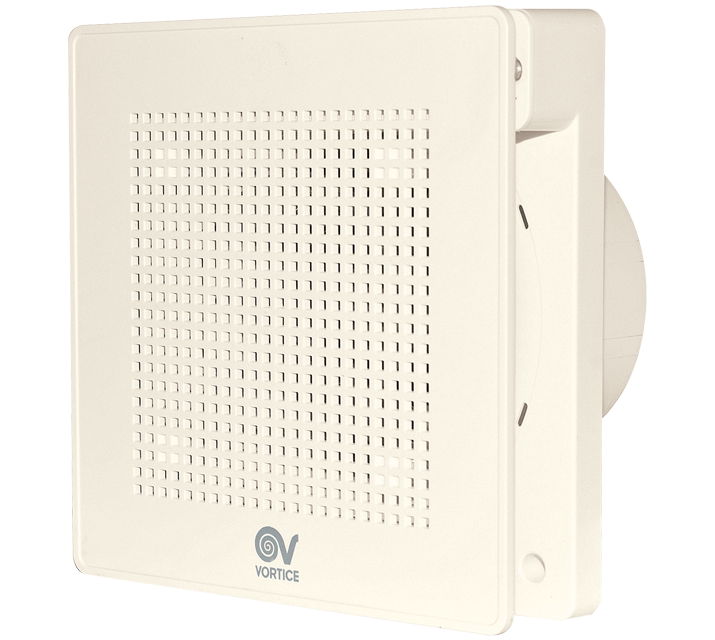

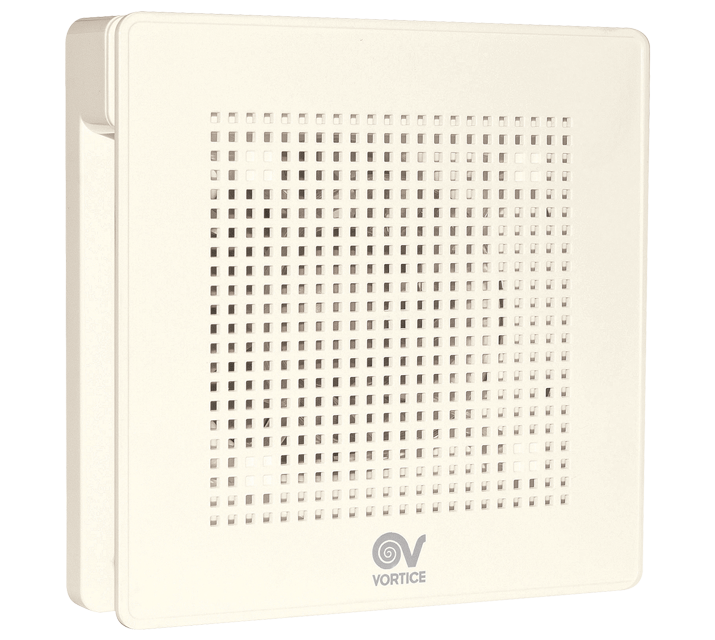

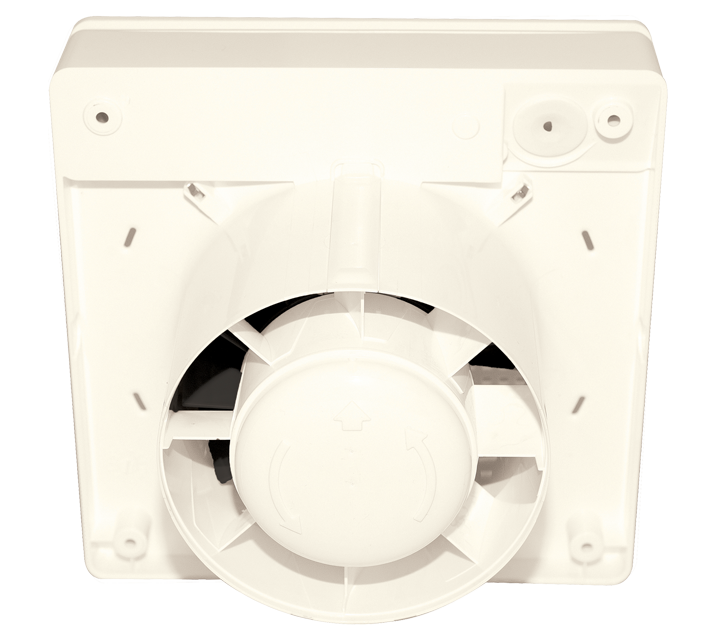

PUNTO EVO is a two-speed axial fan range for wall and ceiling installation. Ball-bearing motors, electronic speed management, a back-draught shutter and IP45 protection move the classic small-room extractor toward a more controlled, durable platform.
Product overview
PUNTO EVO is a two-speed axial fan range for wall and ceiling installation. Ball-bearing motors, electronic speed management, a back-draught shutter and IP45 protection move the classic small-room extractor toward a more controlled, durable platform.
Key features
- UV-resistant white plastic housing
- Thermally protected two-speed motor on ball bearings
- Electronic speed control and integrated back-draught shutter
- Timer, PIR and humidity-controlled variants
Application & selection
For bathrooms, WCs and small rooms where long-life operation, two-speed duty or sensor-based control is desired.
Position in the range
Compared with standard PUNTO, key differences include ball bearings, two-speed electronic operation and a back-draught shutter. GOLD variants add decorative finishes.
Models and variants
10 verified models/variants
Code: 11270
VORT-ME 120/5" LL
Max. Airflow175 m³/h
Max. Pressure49,04 Pa
Power15 W
Speed2070 rpm
Voltage220–240 V
IPIP45
Code: 11264
VORT-ME 100/4" LL T
Max. Airflow95 m³/h
Max. Pressure46,09 Pa
Power9 W
Speed2240 rpm
Voltage220–240 V
IPIP45
Code: 11274
VORT-ME 120/5" LL T
Max. Airflow175 m³/h
Max. Pressure49,04 Pa
Power15 W
Speed2070 rpm
Voltage220–240 V
IPIP45
Code: 11261
VORT-ME 100/4" LL TP
Max. Airflow95 m³/h
Max. Pressure46,09 Pa
Power9 W
Speed2240 rpm
Voltage220–240 V
IPIP45
Code: 11271
VORT-ME 120/5" LL TP
Max. Airflow175 m³/h
Max. Pressure49,04 Pa
Power15 W
Speed2070 rpm
Voltage220–240 V
IPIP45
Code: 11263
VORT-ME 100/4" LL T PIR
Max. Airflow95 m³/h
Max. Pressure46,09 Pa
Power9 W
Speed2240 rpm
Voltage220–240 V
IPIP45
Code: 11273
VORT-ME 120/5" LL T PIR
Max. Airflow175 m³/h
Max. Pressure49,04 Pa
Power15 W
Speed2070 rpm
Voltage220–240 V
IPIP45
Code: 11262
VORT-ME 100/4" LL TP HCS
Max. Airflow95 m³/h
Max. Pressure46,09 Pa
Power9 W
Speed2240 rpm
Voltage220–240 V
IPIP45
Code: 11272
VORT-ME 120/5" LL TP HCS
Max. Airflow175 m³/h
Max. Pressure49,04 Pa
Power15 W
Speed2070 rpm
Voltage220–240 V
IPIP45
