Code: 11313
VORT-MEX 100/4" LL 1S
Max. Airflow90 m³/h
Max. Pressure39,23 Pa
Power9 W
Speed2175 rpm
Voltage220–240 V
IPIP45
Products / PUNTO EVO FLEXO
Residential Ventilation
Vortice product family

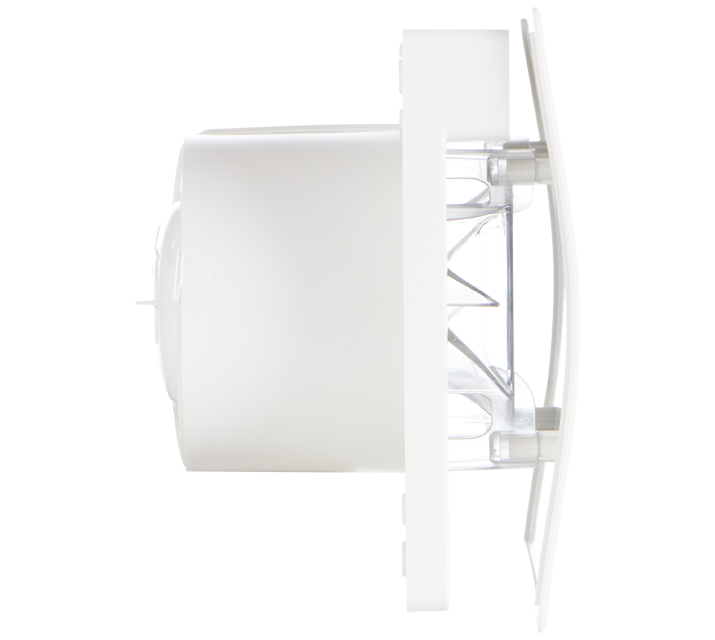

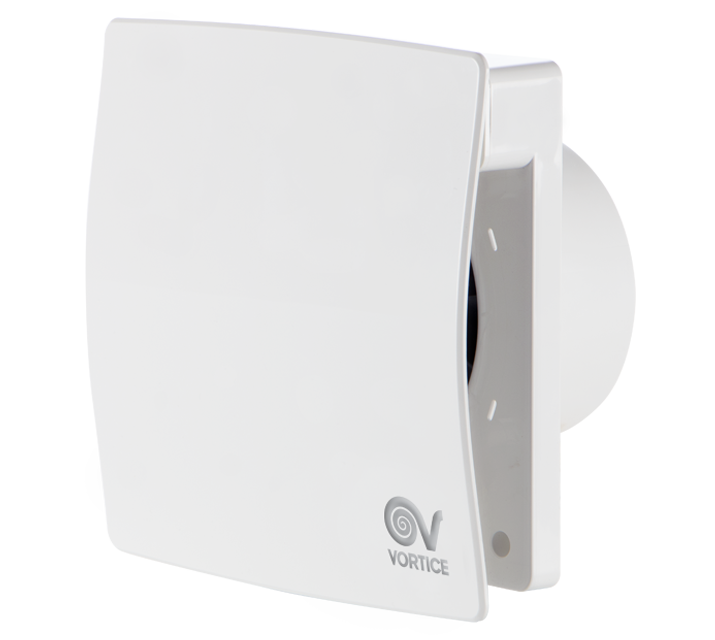

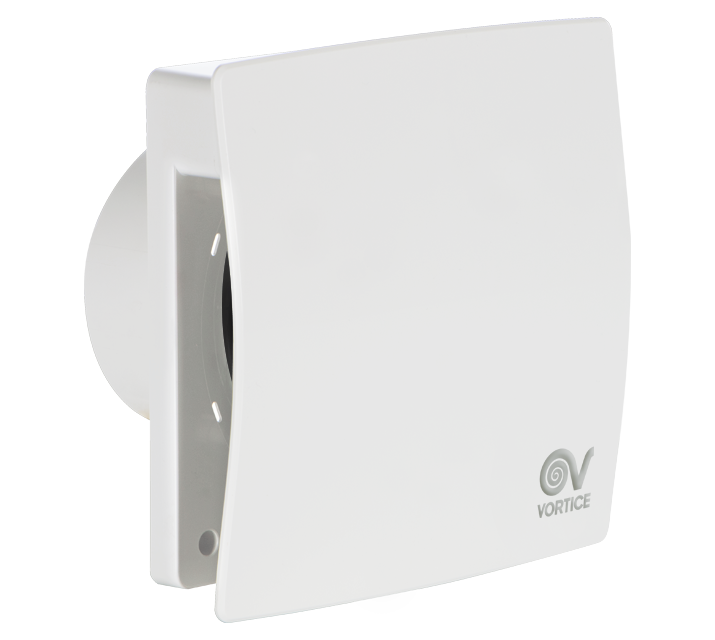

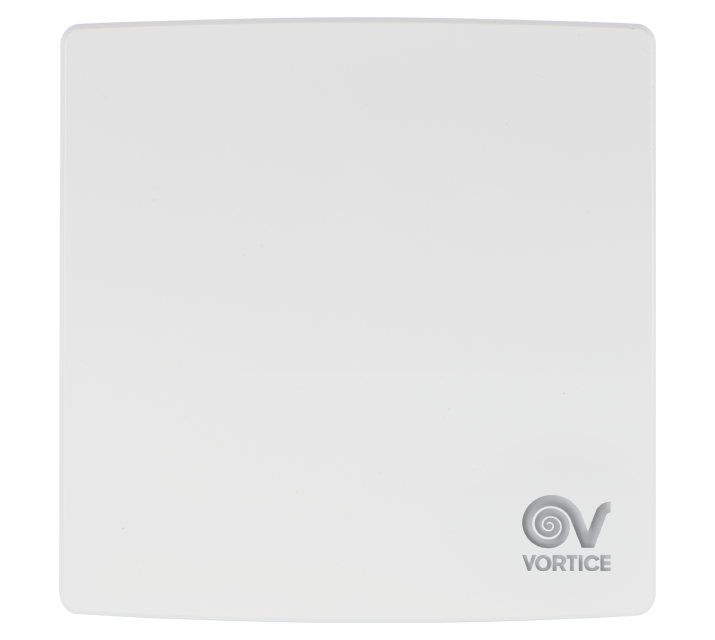

PUNTO EVO FLEXO
PUNTO EVO FLEXO is a compact residential ventilation range for wall, ceiling and false-ceiling installation. A long-life ball-bearing AC motor, mixed-flow impeller, butterfly back-draught shutter and IP45 rating support flexible installation scenarios.
Product overview
PUNTO EVO FLEXO is a compact residential ventilation range for wall, ceiling and false-ceiling installation. A long-life ball-bearing AC motor, mixed-flow impeller, butterfly back-draught shutter and IP45 rating support flexible installation scenarios.
Key features
- Shock- and UV-resistant white ABS housing
- Long-life AC motor on ball bearings
- PP mixed-flow impeller resistant to aggressive substances
- IP45 protection and integrated butterfly back-draught shutter
Application & selection
Useful for wall, ceiling and false-ceiling applications where compact installation, back-draught control and suitability for humid rooms are required.
Position in the range
Although close to PUNTO EVO in airflow class, FLEXO is differentiated by its mixed-flow impeller and installation flexibility; timer and humidity variants are also available.
Models and variants
6 verified models/variants
Code: 11333
VORT-MEX 120/5" LL 1S
Max. Airflow175 m³/h
Max. Pressure49,04 Pa
Power13 W
Speed2075 rpm
Voltage220–240 V
IPIP45
Code: 11314
VORT-MEX 100/4" LL 1S T
Max. Airflow90 m³/h
Max. Pressure39,23 Pa
Power9 W
Speed2175 rpm
Voltage220–240 V
IPIP45
Code: 11334
VORT-MEX 120/5" LL 1S T
Max. Airflow175 m³/h
Max. Pressure49,04 Pa
Power13 W
Speed2075 rpm
Voltage220–240 V
IPIP45
Code: 10941
VORT-MEX 100/4" LL 1S T HCS
Max. Airflow90 m³/h
Max. Pressure39,23 Pa
Power9 W
Speed2175 rpm
Voltage220–240 V
IPIP45
Code: 10961
VORT-MEX 120/5" LL 1S T HCS
Max. Airflow175 m³/h
Max. Pressure49,04 Pa
Power15 W
Speed2075 rpm
Voltage220–240 V
IPIP45
