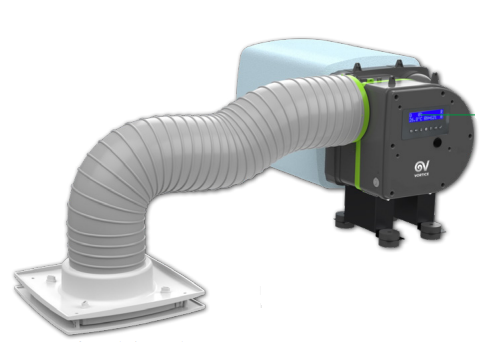

PIV QUADRO RF is a high-efficiency positive input ventilation unit designed to continuously supply clean, filtered loft air to dwellings up to 150 m². Its EC fan, seven operating levels, long-life G4 filter, LCD control panel and wireless RF controller help reduce humidity, condensation and mould risk.
PIV QUADRO RF is a high-efficiency positive input ventilation unit designed to continuously supply clean, filtered loft air to dwellings up to 150 m². Its EC fan, seven operating levels, long-life G4 filter, LCD control panel and wireless RF controller help reduce humidity, condensation and mould risk.
For dwellings with a suitable loft, the unit continuously draws and filters air from the loft and supplies it to the living space through a central diffuser. The positive-pressure strategy helps dilute humid indoor air and reduce condensation and mould. Its higher airflow makes it suitable for larger dwelling volumes.
PIV QUADRO RF is the wireless-control version of the PIV QUADRO platform; the standard QUADRO uses a wired controller while the RF model provides wireless control. Maximum Boost airflow reaches 266.4 m³/h.
1 verified model/variant
Across seven settings, Normal/Boost airflow pairs are 46.8/90, 68.4/118.8, 90/151.2, 111.6/180, 133.2/208.8, 154.8/252 and 176.4/266.4 m³/h. Fan input varies from 2.9 to 27 W depending on setting. Dimensions: 631 × 407 × 326 mm.
Contact Vensis for model selection, technical suitability and quotation.
