Code: 16150
CA 100 MD
Max. Airflow260 m³/h
Max. Pressure346 Pa
Power43 W
Speed2135 rpm
Voltage220–240 V
IPIP44
Products / CA MD E
Ducted Fans
Vortice product family
CA MD E

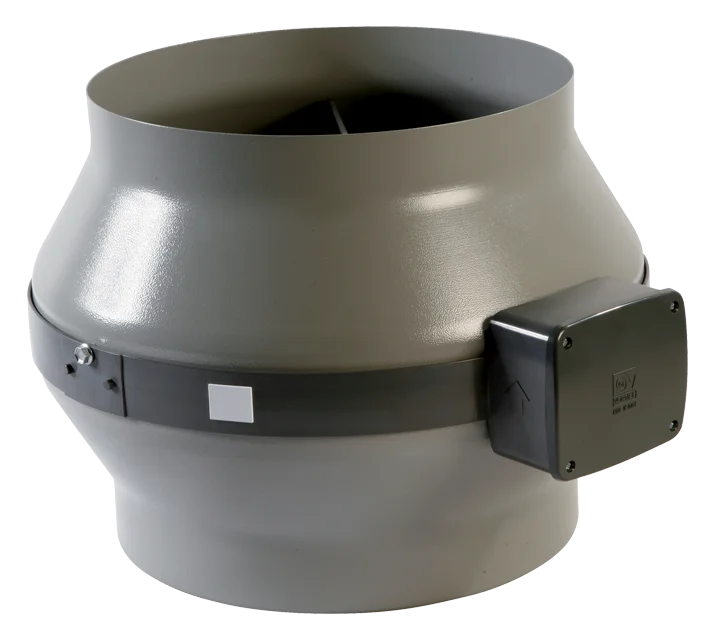

CA MD E is a metal in-line centrifugal fan range. A backward-curved impeller, three-speed AC motor and wall-mount brackets make it a compact option for duct systems requiring useful pressure capability.
Product overview
CA MD E is a metal in-line centrifugal fan range. A backward-curved impeller, three-speed AC motor and wall-mount brackets make it a compact option for duct systems requiring useful pressure capability.
Key features
- Polyester powder-coated metal housing
- Backward-curved centrifugal impeller
- Thermally protected 3-speed AC motor on ball bearings
- Optional control via temperature, humidity, smoke and presence sensors
Application & selection
Designed for ducted commercial and technical ventilation where system resistance is higher than typical simple axial applications.
Position in the range
CA MD E is the in-line/wall-mounted solution; CA MD E RF adapts the same concept for roof installation.
Models and variants
19 verified models/variants
Code: 16151
CA 125 MD
Max. Airflow325 m³/h
Max. Pressure347 Pa
Power43 W
Speed2090 rpm
Voltage220–240 V
IPIP44
Code: 16003
CA 100 Q MD
Max. Airflow220 m³/h
Max. Pressure235 Pa
Power43 W
SpeedNumeric RPM not published by manufacturer
Voltage220–240 V
IPIP44
Code: 16163
CA 150 MD E
Max. Airflow465 m³/h
Max. Pressure399 Pa
Power68 W
Speed2350 rpm
Voltage220–240 V
IPIP44
Code: 16152
CA 150 Q MD
Max. Airflow365 m³/h
Max. Pressure280 Pa
Power43 W
Speed2225 rpm
Voltage220–240 V
IPIP44
Code: 16164
CA 160 MD E
Max. Airflow470 m³/h
Max. Pressure361 Pa
Power68 W
Speed2430 rpm
Voltage220–240 V
IPIP44
Code: 16165
CA 200 MD E
Max. Airflow670 m³/h
Max. Pressure394 Pa
Power68 W
Speed2330 rpm
Voltage220–240 V
IPIP44
Code: 16166
CA 250 MD E
Max. Airflow1010 m³/h
Max. Pressure537 Pa
Power120 W
Speed2660 rpm
Voltage220–240 V
IPIP44
Code: 16167
CA 315 MD E
Max. Airflow1015 m³/h
Max. Pressure545 Pa
Power125 W
Speed2660 rpm
Voltage220–240 V
IPIP44
Code: 16097
CA 315 MD SE
Max. Airflow1550 m³/h
Max. Pressure657 Pa
Power190 W
Speed2800 rpm
Voltage220–240 V
IPIP44
Code: 16107
CA 100 MD (extra EU)
Max. Airflow340 m³/h
Max. Pressure383 Pa
Power85 W
Speed2450 rpm
Voltage220–240 V
IPIP44
Code: 16108
CA 125 MD (extra EU)
Max. Airflow450 m³/h
Max. Pressure363 Pa
Power85 W
Speed2380 rpm
Voltage220–240 V
IPIP44
Code: 16153
CA 150 MD (extra EU)
Max. Airflow770 m³/h
Max. Pressure530 Pa
Power155 W
Speed2080 rpm
Voltage220–240 V
IPIP44
Code: 16154
CA 160 MD (extra EU)
Max. Airflow840 m³/h
Max. Pressure491 Pa
Power155 W
Speed2080 rpm
Voltage220–240 V
IPIP44
Code: 16155
CA 200 MD (extra EU)
Max. Airflow1050 m³/h
Max. Pressure471 Pa
Power155 W
Speed2100 rpm
Voltage220–240 V
IPIP44
Code: 16156
CA 250 MD (extra EU)
Max. Airflow1300 m³/h
Max. Pressure549 Pa
Power200 W
Speed2420 rpm
Voltage220–240 V
IPIP44
Code: 16157
CA 315 MD (extra EU)
Max. Airflow1800 m³/h
Max. Pressure706 Pa
Power280 W
Speed2500 rpm
Voltage220–240 V
IPIP44
Code: 16003
CA 100 Q MD (extra EU)
Max. Airflow220 m³/h
Max. Pressure235 Pa
Power43 W
SpeedNumeric RPM not published by manufacturer
Voltage220–240 V
IPIP44
Code: 16109
CA 150 Q MD (extra EU)
Max. Airflow500 m³/h
Max. Pressure343 Pa
Power85 W
Speed2350 rpm
Voltage220–240 V
IPIP44
