Code: 16120
CA 100 MD E W
Max. Airflow400 m³/h
Max. Pressure380,1 Pa
Power85 W
Speed2450 rpm
Voltage220–240 V
IPIP44
Products / CA MD E W
Ducted Fans
Vortice product family
CA MD E W

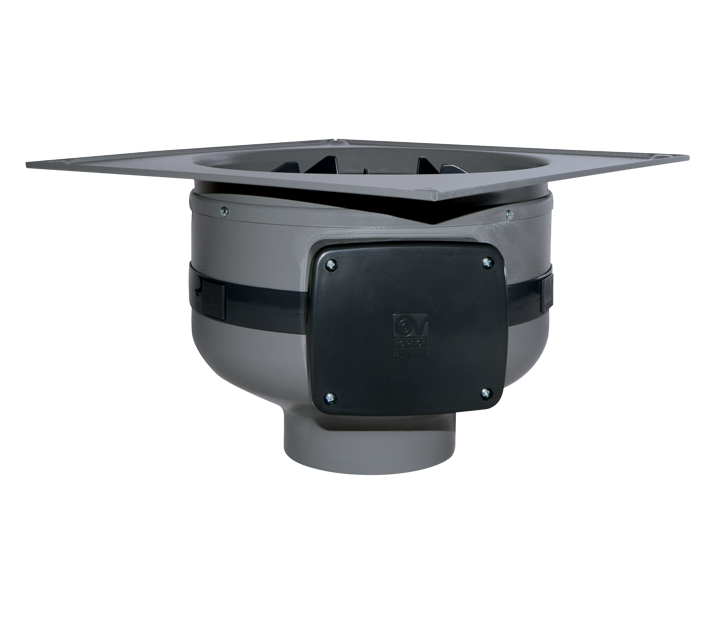

CA MD E W is a three-speed metal fan range designed for external-wall installation. A weather-resistant painted steel casing and wall plate are combined with a thermally protected AC motor and backward-curved impeller.
Product overview
CA MD E W is a three-speed metal fan range designed for external-wall installation. A weather-resistant painted steel casing and wall plate are combined with a thermally protected AC motor and backward-curved impeller.
Key features
- Polyester-painted steel casing and wall mounting plate resistant to weathering
- Ball-bearing AC motor with thermal overload protection
- Backward-curved impeller
- Three-speed operation via optional TRIO-CA controller
- Remote temperature, humidity, smoke and presence sensor control
- IP44 protection when ducted and Class II insulation
Application and selection
For commercial and industrial extract systems where the fan must be mounted directly on an external wall. The range covers connection sizes from 100 to 315 mm.
Position in the range
It is the wall-mount adaptation of the CA MD E concept, distinguished mainly by its weather-resistant wall plate and external mounting arrangement.
Models and variants
8 verified model/variant
Code: 16121
CA 125 MD E W
Max. Airflow445 m³/h
Max. Pressure355,9 Pa
Power85 W
Speed2445 rpm
Voltage220–240 V
IPIP44
Code: 16133
CA 150 MD E W
Max. Airflow617 m³/h
Max. Pressure429,7 Pa
Power85 W
Speed2690 rpm
Voltage220–240 V
IPIP44
Code: 16134
CA 160 MD E W
Max. Airflow665 m³/h
Max. Pressure416,7 Pa
Power85 W
Speed2680 rpm
Voltage220–240 V
IPIP44
Code: 16135
CA 200 MD E W
Max. Airflow825 m³/h
Max. Pressure432,3 Pa
Power90 W
Speed2630 rpm
Voltage220–240 V
IPIP44
Code: 16136
CA 250 MD E W
Max. Airflow1030 m³/h
Max. Pressure548,3 Pa
Power130 W
Speed2675 rpm
Voltage220–240 V
IPIP44
Code: 16137
CA 315 MD E W
Max. Airflow1030 m³/h
Max. Pressure570,8 Pa
Power120 W
Speed2670 rpm
Voltage220–240 V
IPIP44
Code: 16122
CA 150 Q MD E W
Max. Airflow455 m³/h
Max. Pressure318,7 Pa
Power85 W
Speed2435 rpm
Voltage220–240 V
IPIP44
