Code: 16140
VORT-CA 100 MD E RF
Max. Airflow265 m³/h
Max. Pressure389,3 Pa
Power50 W
Speed2405 rpm
Voltage220–240 V
IPIP45
Products / CA MD E RF
Roof FansDucted Fans
Vortice product family
CA MD E RF

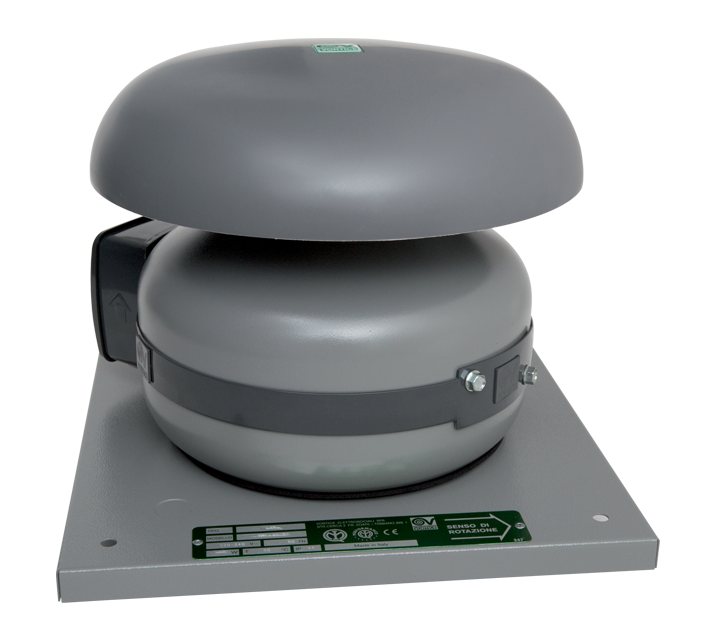

CA MD E RF is a metal centrifugal fan range developed for roof-mounted duct extraction. Its backward-curved impeller and three-speed AC motor provide a compact rooftop solution, while the steel housing and roof plate are protected against atmospheric exposure.
Product overview
CA MD E RF is a metal centrifugal fan range developed for roof-mounted duct extraction. Its backward-curved impeller and three-speed AC motor provide a compact rooftop solution, while the steel housing and roof plate are protected against atmospheric exposure.
Key features
- Metal housing and roof mounting plate
- Backward-curved centrifugal impeller
- Thermally protected 3-speed AC motor on ball bearings
- Compatible with remote temperature, humidity, smoke and presence sensors
Application & selection
Suitable when the fan is to be positioned at roof level, keeping the main fan body outside occupied spaces while maintaining a ducted centrifugal extraction layout.
Position in the range
It shares the core centrifugal architecture of CA MD E; the key difference is the dedicated roof-mount housing and base.
Models and variants
8 verified models/variants
Code: 16141
VORT-CA 125 MD E RF
Max. Airflow312 m³/h
Max. Pressure356,1 Pa
Power50 W
Speed2405 rpm
Voltage220–240 V
IPIP45
Code: 16183
VORT-CA 150 MD E RF
Max. Airflow490 m³/h
Max. Pressure432,1 Pa
Power85 W
Speed2630 rpm
Voltage220–240 V
IPIP44
Code: 16184
VORT-CA 160 MD E RF
Max. Airflow500 m³/h
Max. Pressure400 Pa
Power88 W
Speed2655 rpm
Voltage220–240 V
IPIP44
Code: 16185
VORT-CA 200 MD E RF
Max. Airflow700 m³/h
Max. Pressure440,6 Pa
Power95 W
Speed2555 rpm
Voltage220–240 V
IPIP44
Code: 16186
VORT-CA 250 MD E RF
Max. Airflow850 m³/h
Max. Pressure552,2 Pa
Power130 W
Speed2665 rpm
Voltage220–240 V
IPIP44
Code: 16187
VORT-CA 315 MD E RF
Max. Airflow865 m³/h
Max. Pressure573,7 Pa
Power130 W
Speed2590 rpm
Voltage220–240 V
IPIP44
Code: 16142
VORT-CA 150 Q MD E RF
Max. Airflow312 m³/h
Max. Pressure307,9 Pa
Power50 W
Speed2430 rpm
Voltage220–240 V
IPIP45
